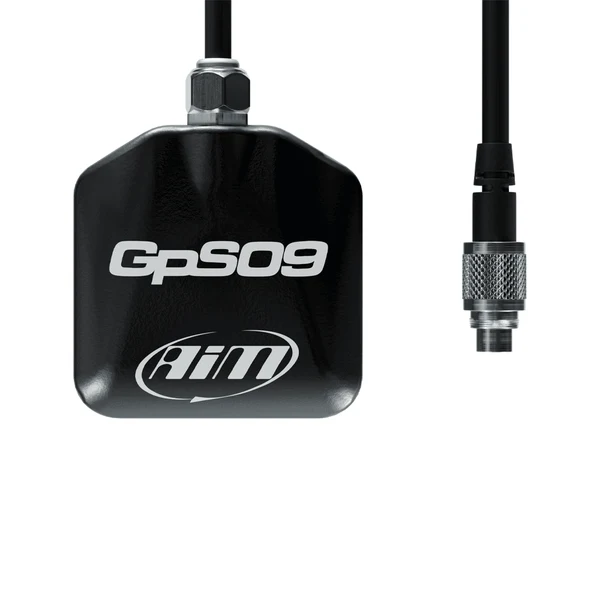

AIM GPS-09 Module for AIM Dashes

AIM GPS-09 Module for AIM Dashes

$659.00

Genoapay
  • Add-on GPS module for the MXS and MXG Strada Dashes. 1.3m cable length.Features:
    • Sample lap and split times as well as speed, position, and acceleration – all the information needed for engine tuning as well as for improving your driving technique.
    • Supports more than 2000 tracks worldwide
    • Easy to set up and review data using Race Studio 3
    • Connects to dual satellites for redundancy and precision
    • Simple, plug and play connection to Strada MXS & MXG Dashes
    • A GPS module also provides the dash with a speed signal. This can be particularly useful for applications where wheel speeds are not available or utilised, such as boats.

    Specifications

    • Dimensions: 64.8 x 53.2 x 19.7 mm, Weight: 60.5 g
    • You do not need to configure anything before going to the track: GPS09 will do it all by itself.
    • The satellite signal is locked very rapidly. A few seconds after switch-on, the GPS09 is ready to operate
    • An average of less than one-meter tolerance, which means absolute precision in determining vehicle position in curves and when the finish line is very close to another track segment
Categories: , ,

Description

Aim GPS09 Module enhances the track mapping capabilities of the Aim data loggers and dash loggers, taking your performance to the next level.
You won’t have to rely on trackside beacons for lap timing and split times. Store data for up to 50 tracks, with up to 5 splits per track.
The GPS09 also calculates and logs speed, lateral and longitudinal g-forces as well as precise vehicle positioning.

This advanced module leverages Race Studio 3’s powerful integration of GPS, video, and data, making it an essential tool for serious racers.

  • Faster 25Hz sampling rate, offering improved positional accuracy to within less than one foot.
  • Connected via a CAN cable, easy and efficient install.
  • Dimensions – 64.8 x 53.2 x 19.7 mm
  • Weight – 60.5 g
  • Cable Length – 1.3m

Use the Aim GPS09 Module with:

AiM MXL2/MXG/MXP/MXS auto dashes. EVO4SD/EVO5 data loggers and SmartyCam HD GP 2.2
